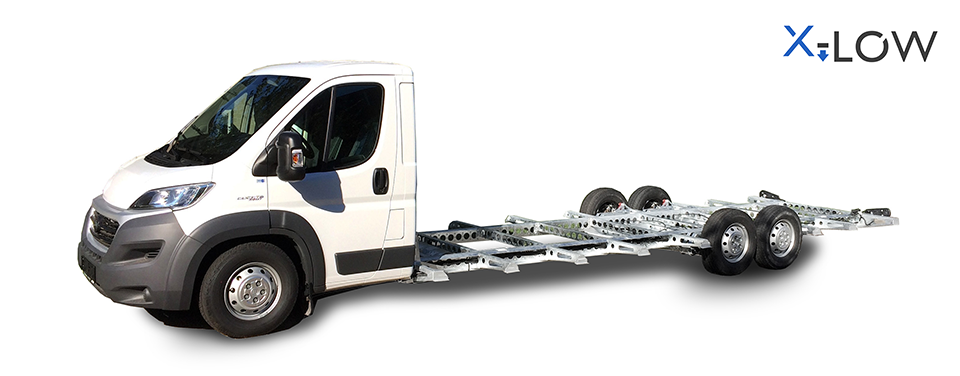

X-LOW MODULAR CHASSIS
LIGHTWEIGHT - LOW FLOOR - MODULAR BUILT
The lowest entry level, in combination with a high loading capacity, offers the ideal base for distribution of people and goods. Given its modular character and custom dimensions, the X-Low suits a variety of applications.
The modular construction results in short delivery times, starting from only a few weeks!
The patented coupling system connects the X-Low chassis with the cabin, and allows the cabin to be easily replaced after depreciation. Giving the vehicle a second life benefits both your purse and the environment.
Due to its various advantages, the X-Low chassis can serve as the perfect base for a variety of vehicles:
(Electric) commercial vehicles
Mobile offices and workspaces
Foodtrucks
City distribution & moving trucks
Horse trucks & Motorhomes
Bespoke vehicles
Low Floor inspiration on Insta »
Advantages
Ultra-low entry level
There is two options in low floors available; a lowered aisle of only 250 mm above ground level or a low loading floor at only 410 mm above ground level.
Allowing the loadingfloor to lower at 250mm provides various advantages in efficiency, productivity and ergonomy.
Ultra strong light-weight construction
The chassis components are constructed out of high grade S700MC steel, riveted together to exclude tension in the chassis. This makes the chassis construction both ultra-strong and ultra-light.
The bearing construction and lightweight loading floor contribute to a higher efficiency and most optimal productivity within the scope of a regular driving license (B).
Airsuspension as a standard
The rear axles of the X-Low chassis are equipped with air suspension as a standard. The air suspension has an Air Drive Control (ADC) system to ensure stability and the chassis to remain on the correct height while driving.
The air suspension is easy to use with the touchscreen controller.
The air suspension offers the possibility to lift or lower the vehicle very easily to the preferred height within seconds.
Unique coupling system
The X-low chassis is constructed to the cabine with an unique coupling system.
This allows the cabin to be exchangeable and can be replaced after full depreciation so the valuable bodywork can start a second life.
The universal coupling system is suitable for Fiat, Peugeot, Citroen, Renault, Opel and VW. It is very efficient and can be replaced within a day.

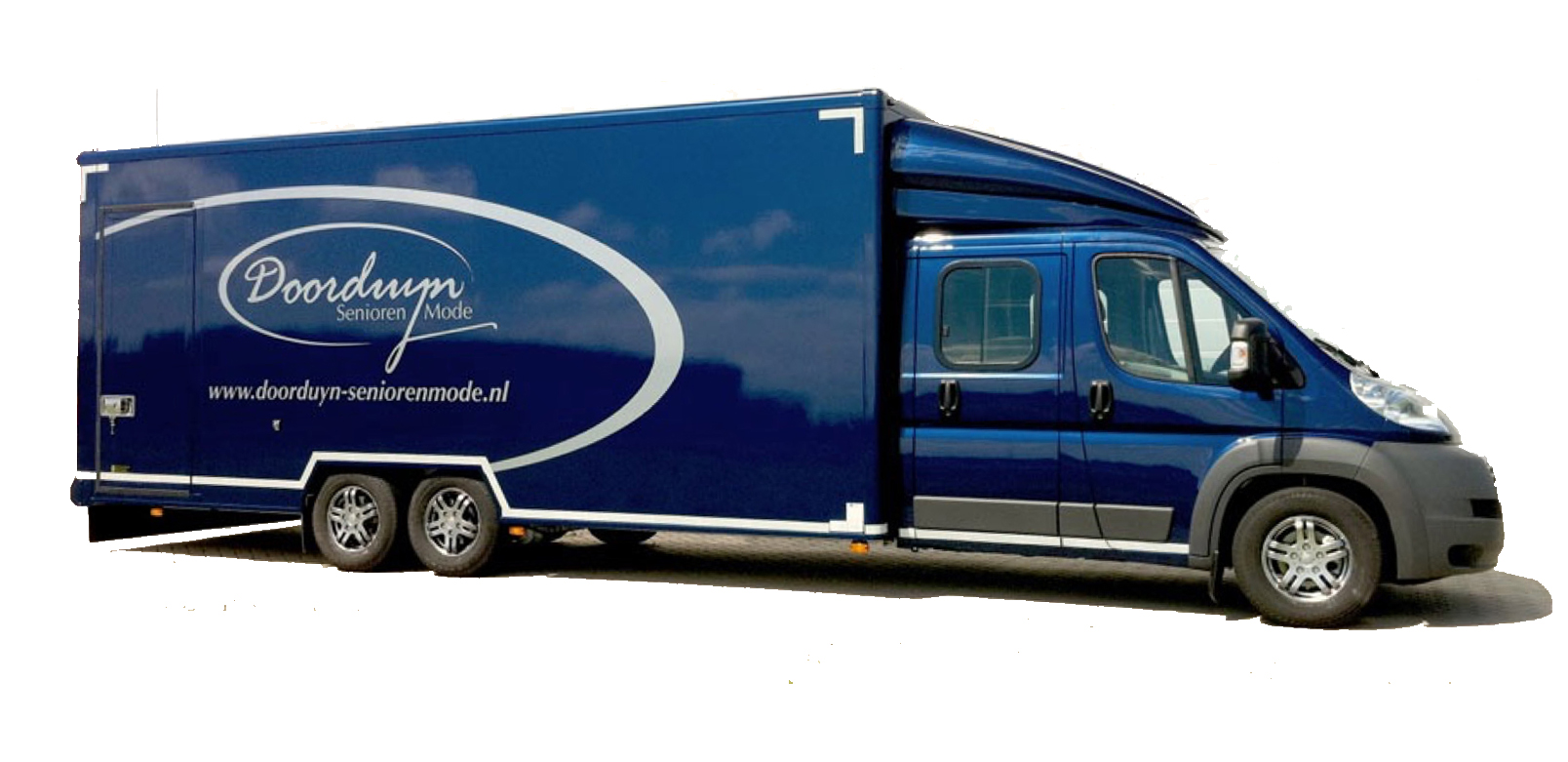

DOUBLECAB
A combination of the X-Low chassis with a Doublecab is an unique product in the market.
The vehicle has an ultra-low loading floor of only 16" with a load capacity of 8,800 Lbs.
This unique concept allows a 16,500 Lbs GVW vehicle, with a body length up to 295". Tare weight approx. 5,500 Lbs.
| Loadingfloor 9.8 Inches |
Max Weight 16,500 Lbs |
Power 276 HP |
| Body length | up to 295" | |
| Vehicle height | up to 158" | |
| Load capacity | up to 10,000 Lbs | |
Find more specs »
Short Cab

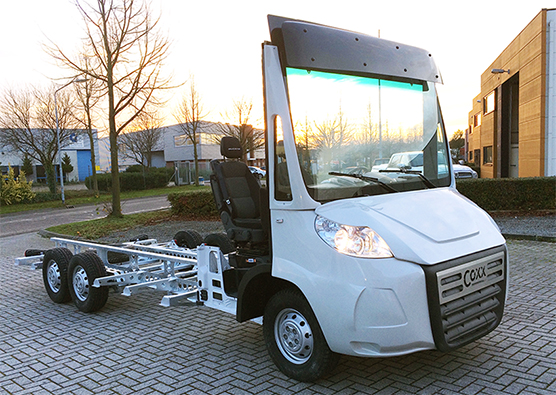

The Shortcab is an in-house developed cabin, based upon a 'naked' Fiat Ducato cabin. The Shortcab cabin is mounted regularly to the Coxx X-Low chassis and can be used in combination with both short and (extra) long chassis.
The Shortcab is only one single meter long, compared to a regular Ducato cabin with a 2,40 meter length. This allows more space for vending, distribution or promotion. A gain of 1.4 meter net!
